E39 M5 Stage 2 Supercharger Kit

$13,000.00 $11,250.00

The RK Autowerks E39 M5 stage 2 supercharger system was developed for the enthusiast looking for more power from his or her M5. Unlike many other kits where you lose drivability or reliability, our kit has endured the test of time and proven to excel in both areas. This is a result of countless hours of development, testing, and fine tuning. Each kit comes with a tune for your specific car, no off the shelf generic tune, ensuring you obtain every last horsepower! Fit and finish is equal to BMW OEM and 100% reversible in the situation where you may want to sell your vehicle. With the combination of all of this, the supercharger system produces a reliable 625 horsepower and 700Nm of Torque with surpassed smoothness and reliability of a stock car.



Description

The RK Autowerks E39 M5 stage 2 supercharger system was developed for the enthusiast looking for more power from his or her M5. Unlike many other kits where you lose drivability or reliability, our kit has endured the test of time and proven to excel in both areas. This is a result of countless hours of development, testing, and fine tuning. Each kit comes with a tune for your specific car, no off the shelf generic tune, ensuring you obtain every last horsepower! Fit and finish is equal to BMW OEM and 100% reversible in the situation where you may want to sell your vehicle. With the combination of all of this, the supercharger system produces a reliable 625SAE horsepower and 700Nm of Torque with surpassed smoothness and reliability of a stock car.

With the RK Autowerks Stage 2 supercharger kit the user now obtains stable charge cool temperatures with the addition of the intercooler. This is most noticeable for users in hot climates or those that road race their M5. The RK intercooler system is dyno and lab tested to show it can sustain the necessary charge temperatures, rigorous testing was done to select the perfect intercooler and package it for the M5. With the intercooler the stage 2 kit also includes carbon fiber piping to reduce heat transfer as the air is routed throughout the system. A carbon fiber manifold is also included to mitigate the high boost plenum issues many may see. This can lead to a ruined hood or permanent engine damage if not addressed, which is why we include a manifold with every stage 2 kit.

The system contains a Vortech V3si head unit at the heart of the system. This unit is self contained and does not require any external lubrication. Coupled with the 8rib billet crank pulley and spring loaded tensioner system, you are sure to not have any belts slipping under hard driving. We’ve also gone a step above the competition by producing aerospace grade carbon fiber pieces for the intake and the discharge, making the kit visually pleasing and being functional at the same time by avoiding heat soak you would get with aluminum pieces. Everything necessary for installation is supplied down to the last bolt.

With the addition of the new supercharger, recalibration of the ECU was developed as well. Reprogrammed throttle, fuel, ignition, Vanos, and EGR maps were developed to ensure you get the utmost reliability and performance from your M5. Factory failsafes were not compromised neither were OBD emission features. Allowing you to retain all of these features.
The system maintains all OBD-II functions, and it is backed by a comprehensive 2 year, unlimited mileage warranty. The system installs in 8-10 hours using normal hand tools and no irreversible modifications to the car is necessary.

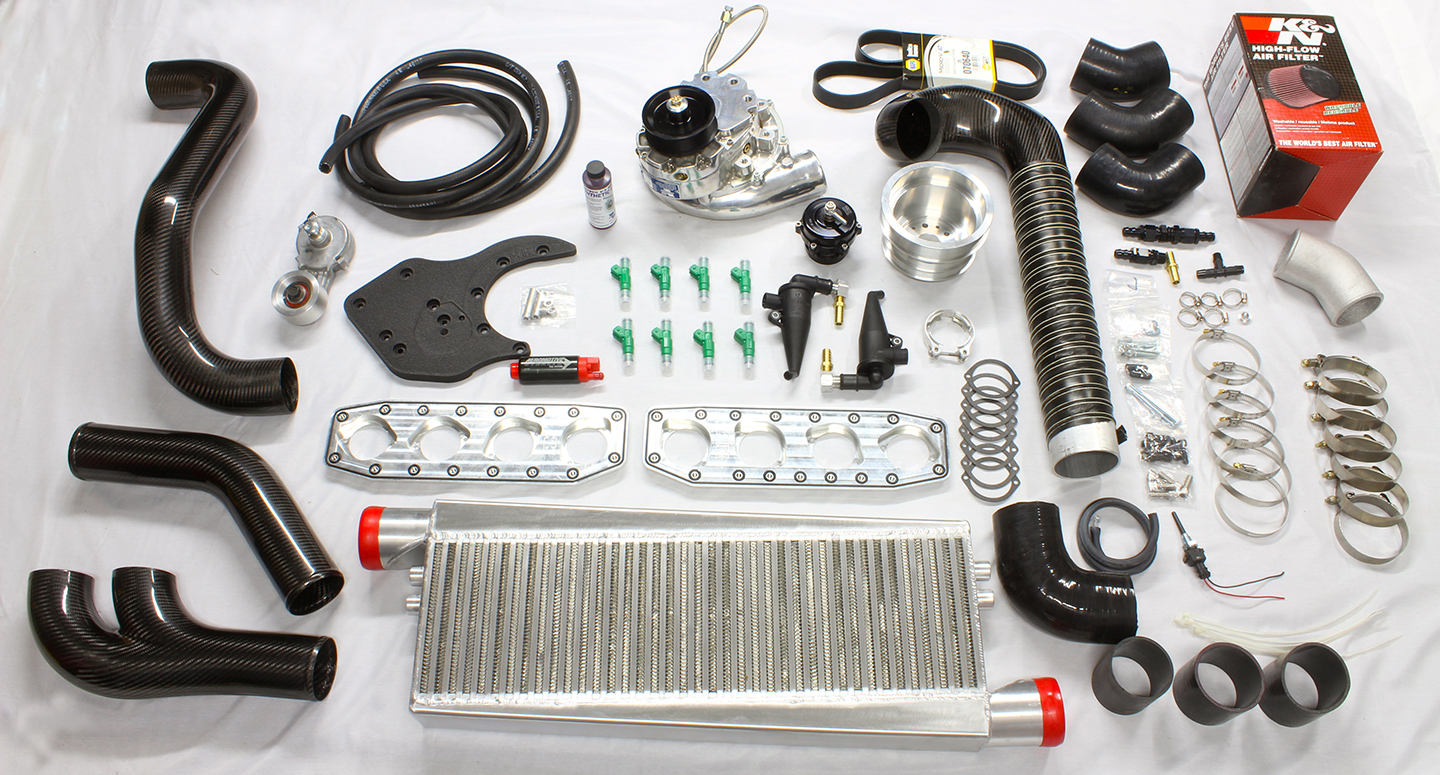

Our kit contains

  1. RK CNC billet 8 rib crank pulley
  2. Fully automatic spring loaded belt tensioner
  3. 8 Rib belt drive
  4. Vortech V3si self-contained supercharger
  5. RK Carbon Fiber intake
  6. RK Carbon Fiber discharge pipe
  7. RK CNC anodized supercharger bracket
  8. RK Bumper mounted intake system with integrated CCV bypass system
  9. RK Billet aluminum plenum plates to ensure no boost leaks
  10. RK Intercooler

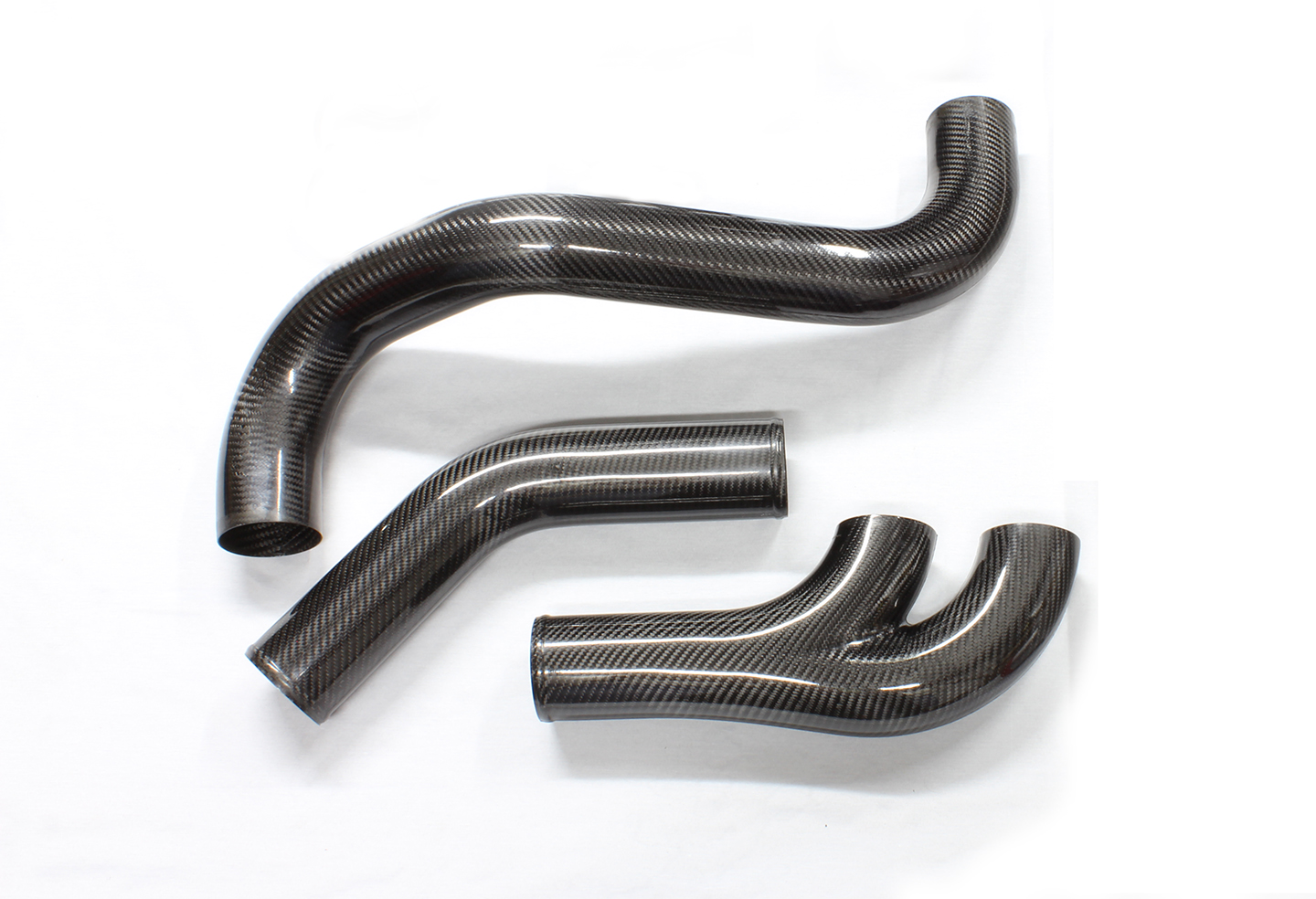

  11. RK Carbon fiber charge piping

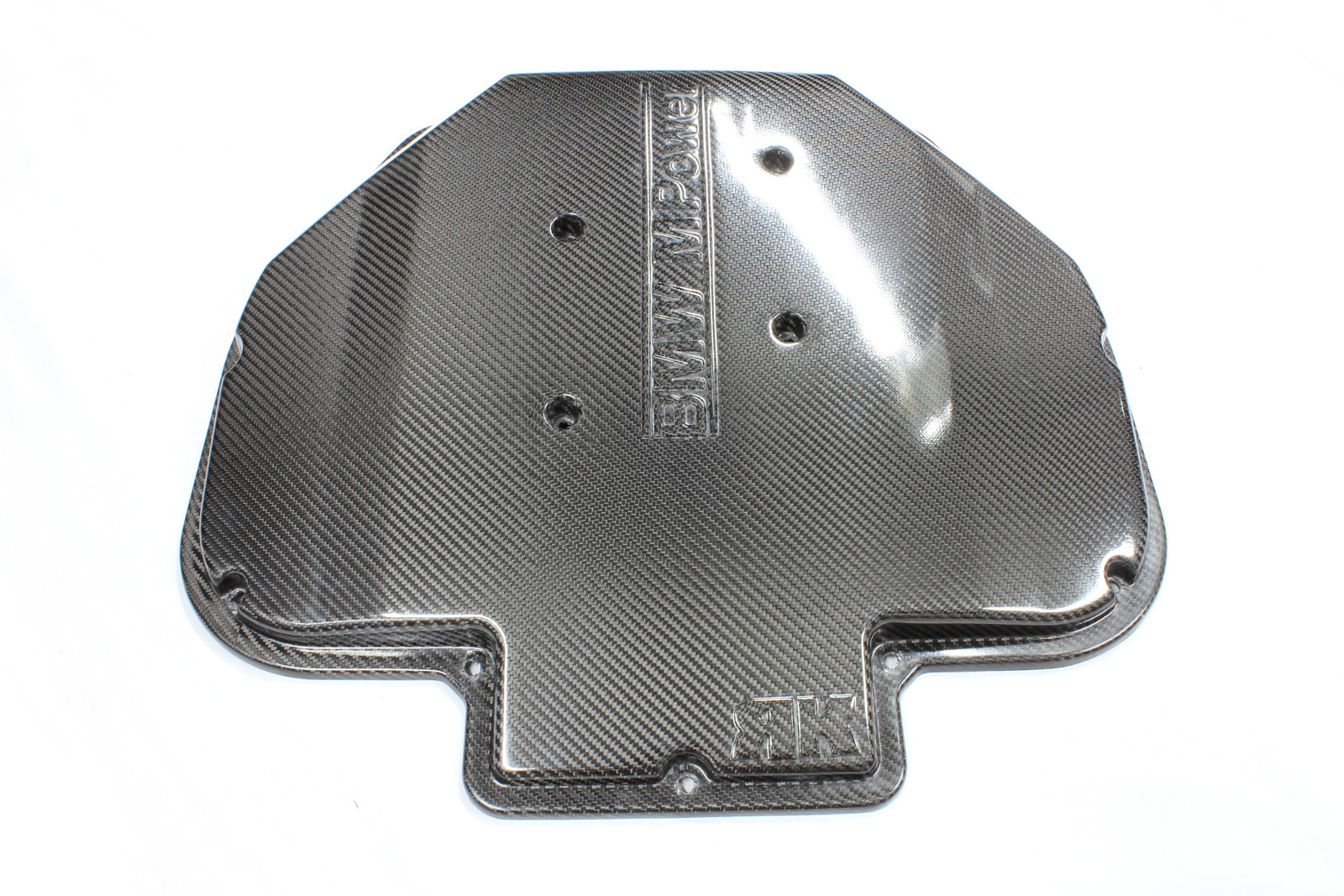

  12. RK Carbon fiber manifold

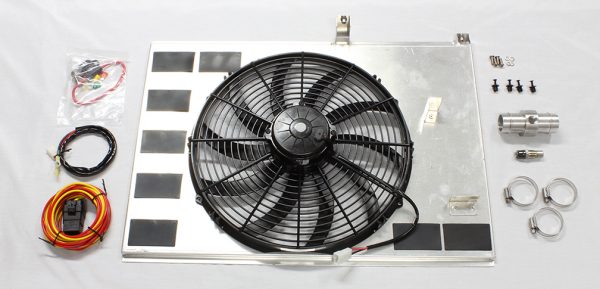

  13. RK Electric fan kit
  14. Tial Q BOV
  15. 8 High flow Bosch injectors
  16. All necessary bolts, hose clamps, and hoses
  17. Detailed step-by-step installation instructions
  18. 2 year unlimited milage warranty
  19. 100% Maintenance free operation
  20. 100% bolt-on fully reversible installation
  21. Custom tune calibrated specifically for your M5 and its mods

Part number: RKE39S1
Boost pressure: 10 PSI @ 6500RPM
Horsepower: 625 SAE
Torque: 520 lb-ft/700Nm
Installation time : 12-14 hours

Application intended for: E39 M5 from 1998 1999 2000 2001 2002 2003

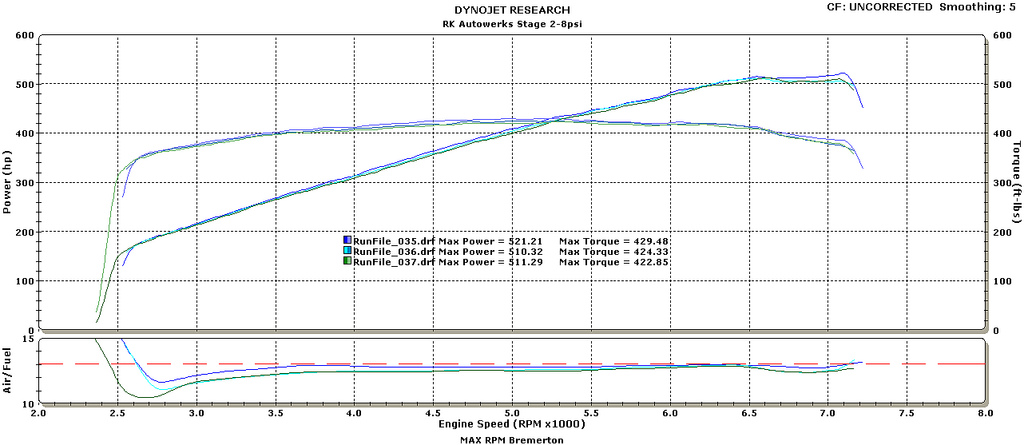

RK Autowerks Stage 2 9-10psi yields 525 whp (625 BHP using 15% drivetrain loss)

*Fuel pump is not included anymore in stage 2

Additional information

Weight 60 lbs
Dimensions 24 × 24 × 24 in
