S63TU Garrett GTX3076R Gen II Turbo Upgrade – M5 M6 X5M X6M

No longer in production


1/2022 – Our 3076R turbos are no longer in production.

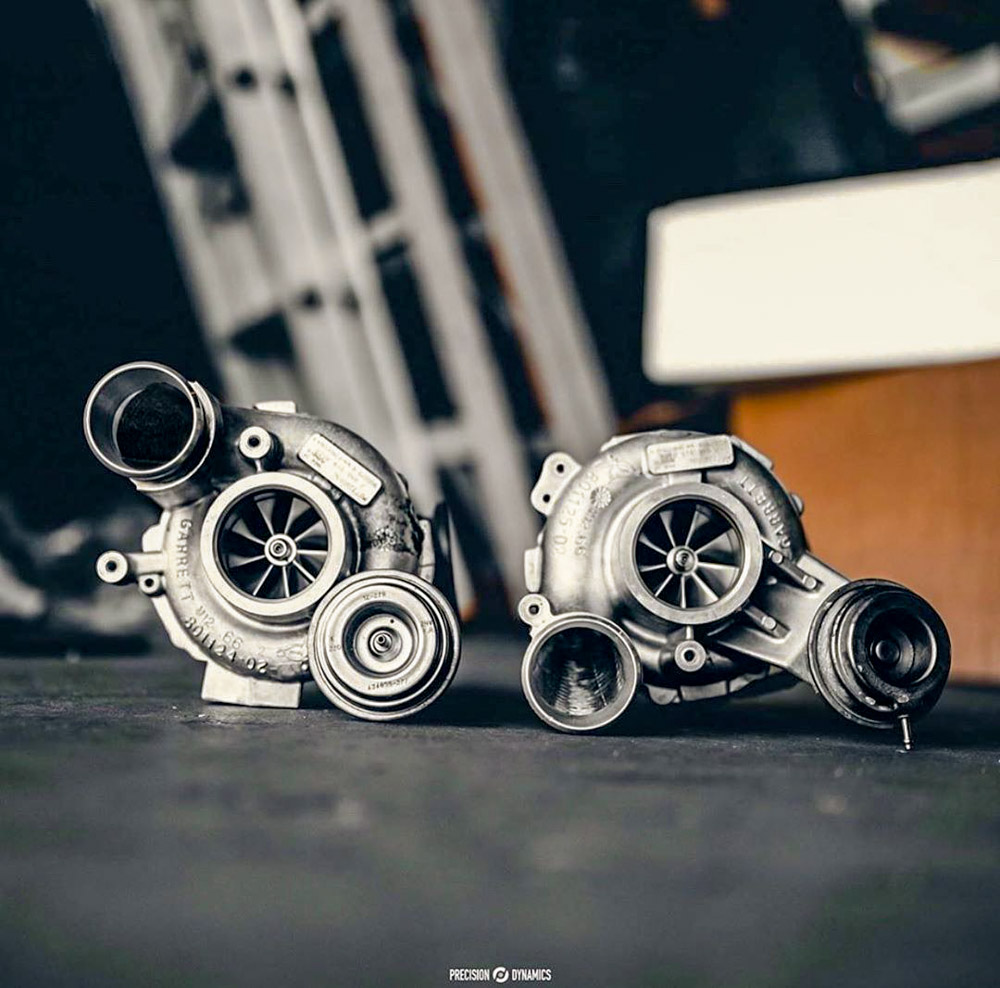

The RK Autowerks Garrett 3076R turbos are the first and only direct bolt on Garrett 3076Rs available for the F1x M platform.

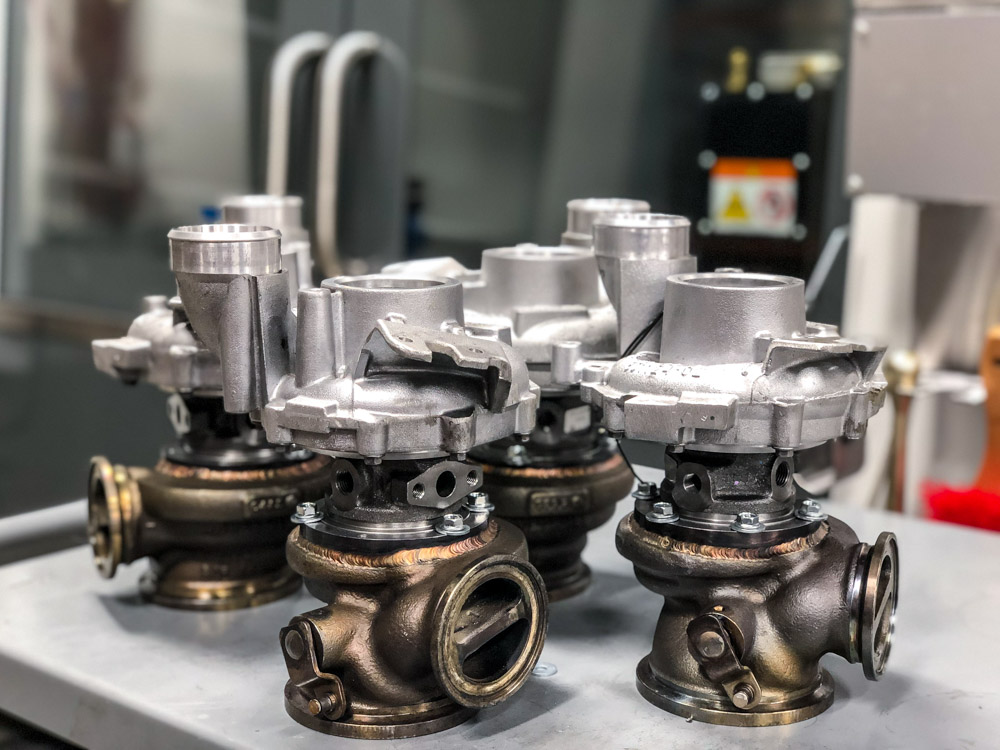

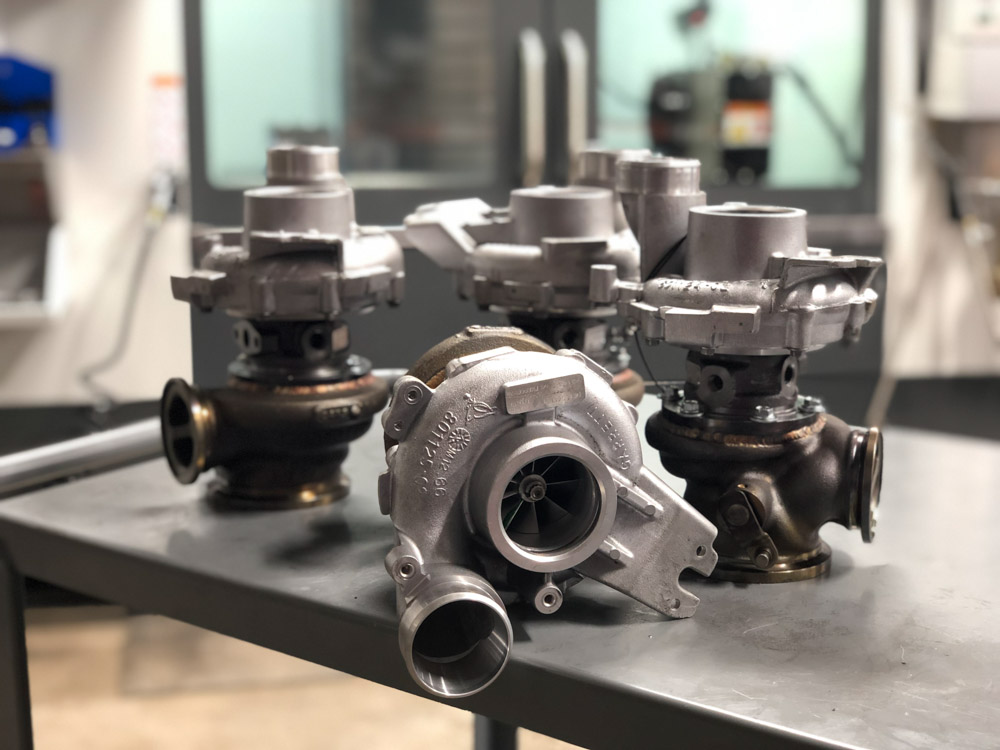

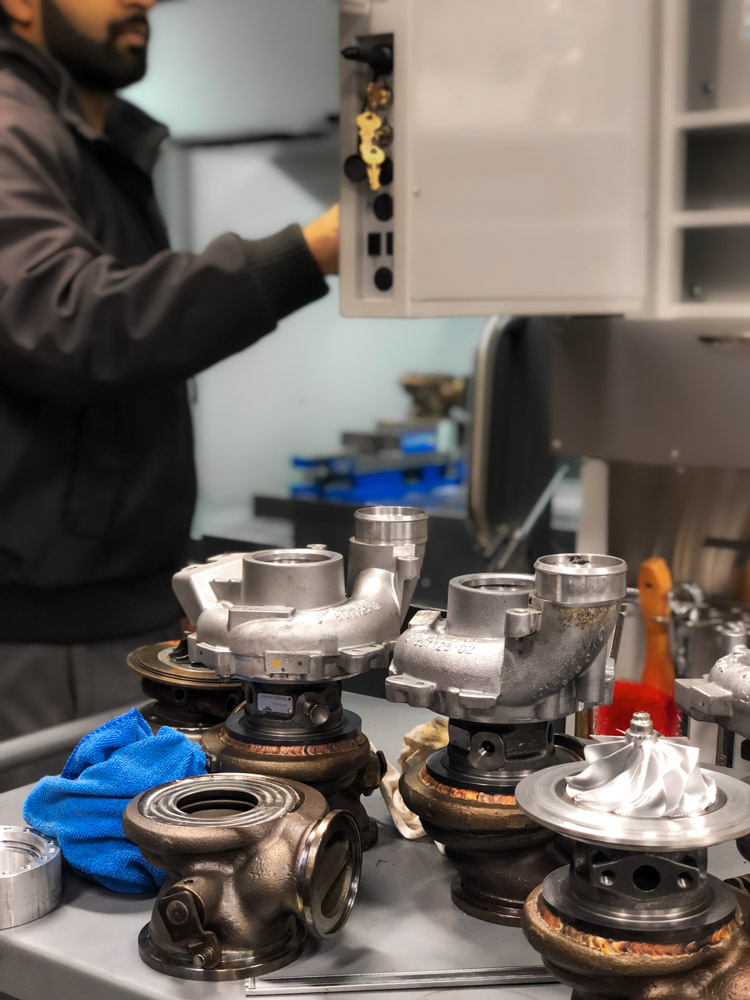

As with all our projects, this one started with laser scanning the stock turbo housings and the Garrett 3076R CHRA.  Doing this allows us to get a perfect model of the housings and create extremely precise CAD models for the modifying the housings on our in house 4-axis CNC mill.  The result is a direct bolt on application of the Garrett Turbos GTX3076R for the S63TU motor.  Upgrading to our turbos is the easiest way to get to boost faster and to stay in boost higher up in the rev range.  These turbos are capable of producing 1000 hp+ with supporting mods.

  • Capable of 1000 hp+
  • Garrett 3076R CHRA
  • Bolt-on application – CNC Machined Stock Housings
  • Larger Compressor Wheel
  • Larger Turbine Wheel
  • Dual Ball Bearing


Direct Bolt-On for:

  • 2012-2016 F10/12/13/06 M5 & M6
  • 2015-2018 F85 X5M & X6M

Core Deposits

  • $2500 – Refundable upon receipt of stock turbos

Warranty Info

Additional information

Weight 32 lbs
Dimensions 20 × 10 × 12 in
Core Option

Will send core back later ($2500 Deposit), Sending core in first
