NOTE: The supercharger kits are no longer in production or for sale.

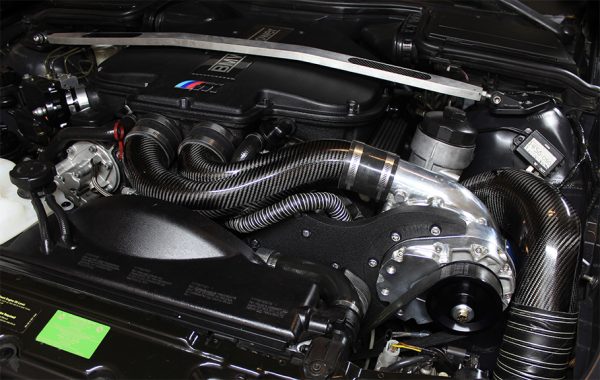

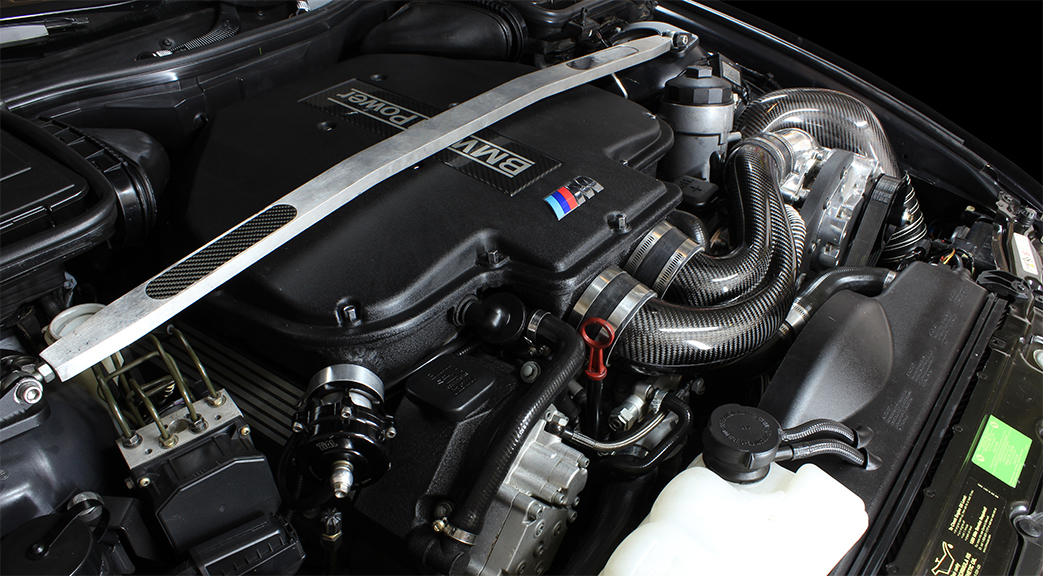

The RK Autowerks E39 M5 supercharger system was developed for the enthusiast looking for more power from his or her M5. Unlike many other kits where you lose drivability or reliability, our kit has endured the test of time and proven to excel in both areas. This is a result of countless hours of development, testing, and fine tuning. Each kit comes with a tune for your specific car, no off the shelf generic tune, ensuring you obtain every last horsepower! Fit and finish is equal to BMW OEM and 100% reversible in the situation where you may want to sell your vehicle. With the combination of all of this, the supercharger system produces a reliable 550 horsepower and 640Nm of Torque with surpassed smoothness and reliability of a stock car.
The system contains a Vortech V3si head unit at the heart of the system. This unit is self contained and does not require any external lubrication. Coupled with the 8rib billet crank pulley and spring loaded tensioner system, you are sure to not have any belts slipping under hard driving. We’ve also gone a step above the competition by producing aerospace grade carbon fiber pieces for the intake and the discharge, making the kit visually pleasing and being functional at the same time by avoiding heat soak you would get with aluminum pieces. Everything necessary for installation is supplied down to the last bolt.
With the addition of the new supercharger, recalibration of the ECU was developed as well. Reprogrammed throttle, fuel, ignition, Vanos, and EGR maps were developed to ensure you get the utmost reliability and performance from your M5. Factory failsafes were not compromised neither were OBD emission features. Allowing you to retain all of these features.
The system maintains all OBD-II functions, and it is backed by a comprehensive 2 year, unlimited mileage warranty. The system installs in 8-10 hours using normal hand tools and no irreversible modifications to the car is necessary.

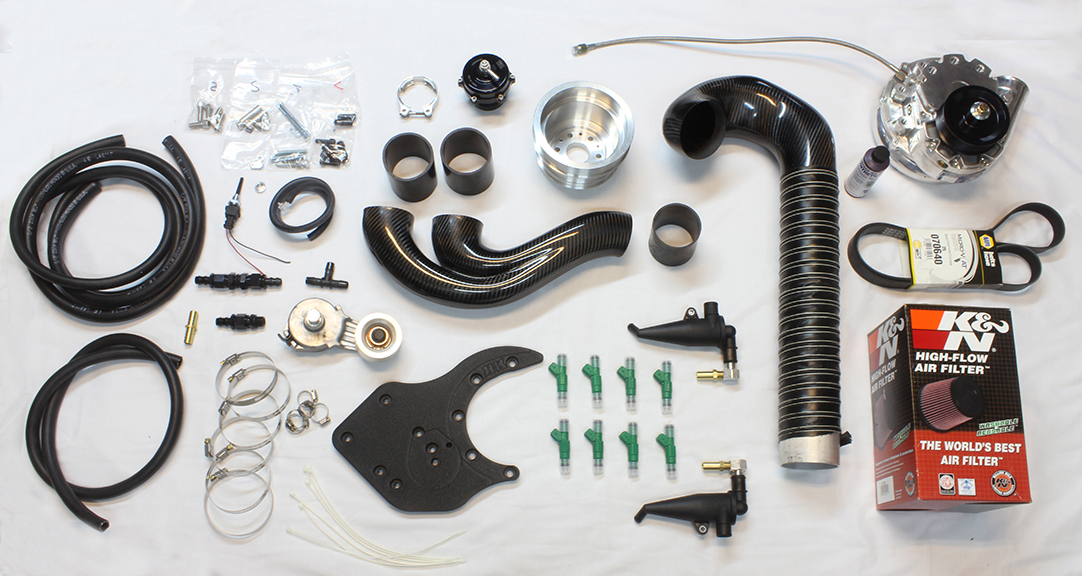

Our kit contains
- RK CNC billet 8 rib crank pulley
- Fully automatic spring loaded belt tensioner
- 8 Rib belt drive
- Vortech V3si self-contained supercharger
- RK Carbon Fiber intake
- RK Carbon Fiber discharge pipe
- RK CNC anodized supercharger bracket
- Tial Q BOV
- RK Bumper mounted intake system with integrated CCV bypass system
- RK Billet aluminum plenum plates to ensure no boost leaks
- 8 High flow Bosch injectors
- RK CNC machined fan spacers
- All necessary bolts, hose clamps, and hoses
- Detailed step-by-step installation instructions
- 2 year unlimited milage warranty
- 100% Maintenance free operation
- 100% bolt-on fully reversible installation
- Custom tune calibrated specifically for your M5 and its mods
Part number: RKE39S1
Boost pressure: 7 PSI @ 6500RPM

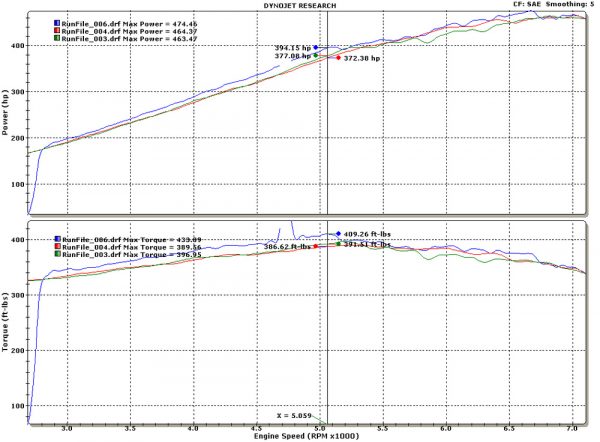

Horsepower: 550 SAE
Torque: 470 lb-ft/640Nm
Installation time : 8-10 hours
Application intended for: E39 M5 from 1998 1999 2000 2001 2002 2003

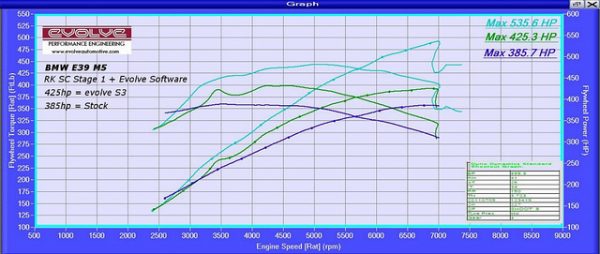

RK Autowerks Stage 1 6.5-7psi yields 470 whp (550 BHP using 15% drivetrain loss)

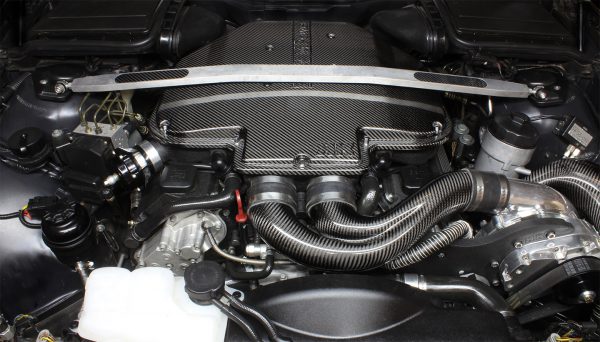

*Carbon fiber manifold not included with base stage 1 kit
